LED Sign updated with ESP32 and LED Dividers

 I have updated my LED signs with an ESP32 processor and LED Dividers.  The hope is to eventually support some sort of graphics.  Maybe even design it on your phone and upload it to the sign.

Here is a project by someone else that supports 16x16 graphics on your phone:

I also made an instructable for this project:

The biggest change was to add dividers between the LED's.  This picture is of the dividers being installed on the left.  As you can see it makes a big difference.

This time I used zig zag wiring where each line goes inthe opposite direction.  At one end they get looped back by some 30 gauge wire.  At the other end they get power as shown in the second picture below.

Once the strips are wired and tested you can add the dividers.  The dividers are available at thingiverse:

You will have to print out six of the design missing two sides and six of the design missing one side.  Then they are glued together ontop of the LED strips.  I added weights to hold the arrays to the sign while the glue was drying.

I used a ESP32 processor wired as shown below.  The code is on the instructable.

Thursday, February 9, 2023

Fix for cheap refrigerator plastic parts

These days there are some really cheap refrigerator plastic parts.  The things in the doors break and fall out.  The bottom shelf plastic falls apart.  I looked for replacements and they run close to $100!  So I developed my own fixes for them.  To start with the door shelf holders can be fixed with a pencil and lots of glue!  The pencil is covered in E6000 or similar glue and inserted under the lip.

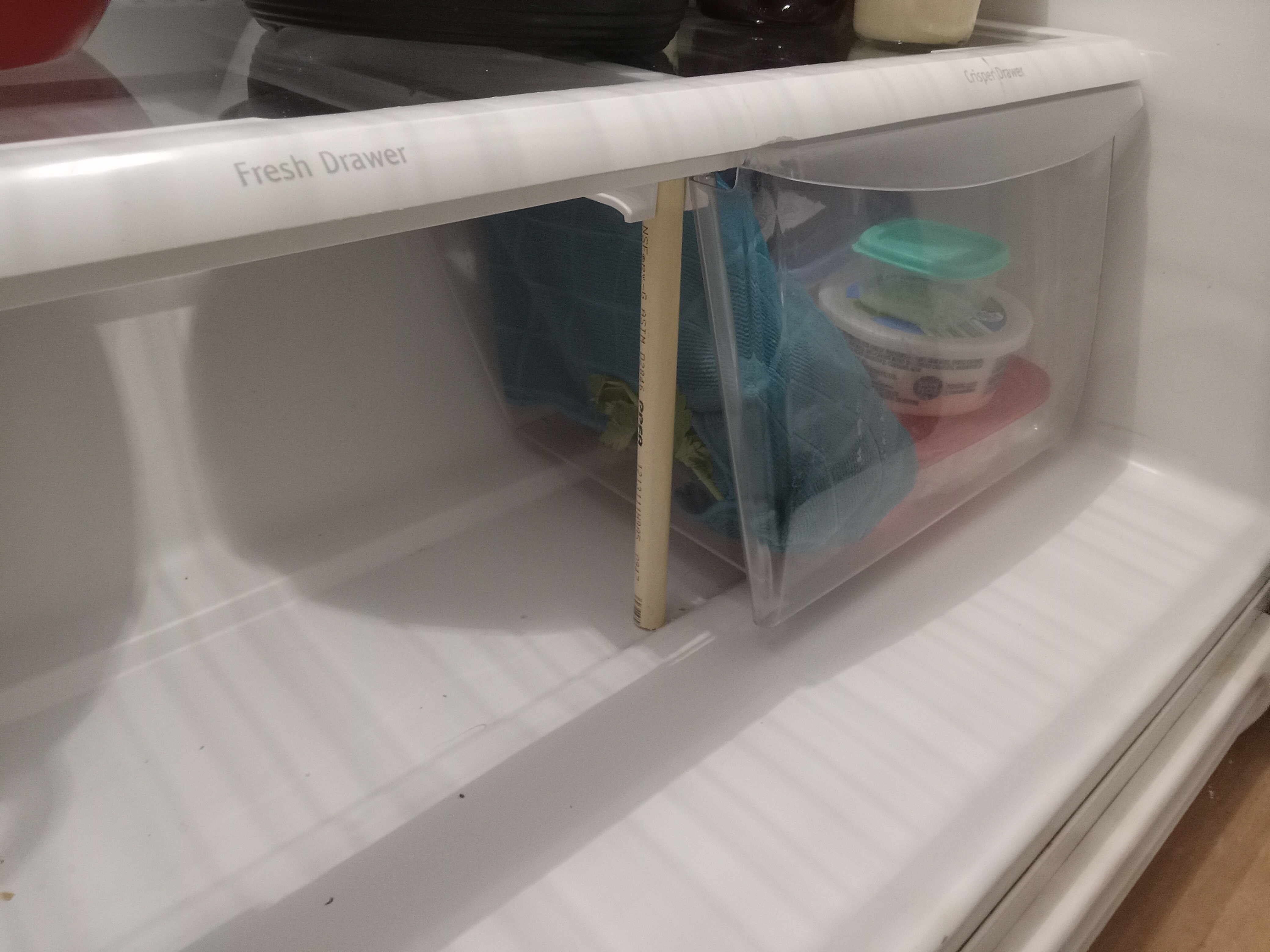

This is a close up of the pencil that reinforces the shelf front.

The bottom plastic surrounds a piece of glass.  The plastic breaks away and leaves the glass loose.  A nine inch long piece of 1/2 inch plastic water pipe works perfectly.  No glue is needed, but you can add some if you want.

Don't forget to fix the handle.  That breaks off rather quickly.  I used a metal strap, some screws and lots of glue.

Friday, February 3, 2023

Battery powered Rapid Fire Rektify Nerf gun

I 3D printed yet another nerf gun.  The design I used is called "rektify" and is located on thingiverse here: However it needed some improvements.  The biggest problem is that the pusher would strip out the gears in the 90:1 motor gearbox.  Then I found an all metal gear version on ebay and that solved the problem.  Also I used washers as spacers between the layers around the pusher assembly.  Without the washers it gets stuck.  Another change was to drill out holes for the pusher motor gearbox mounting screws heads.

I tested it with a 12 round magazine as well. The video is on youtube and facebook.

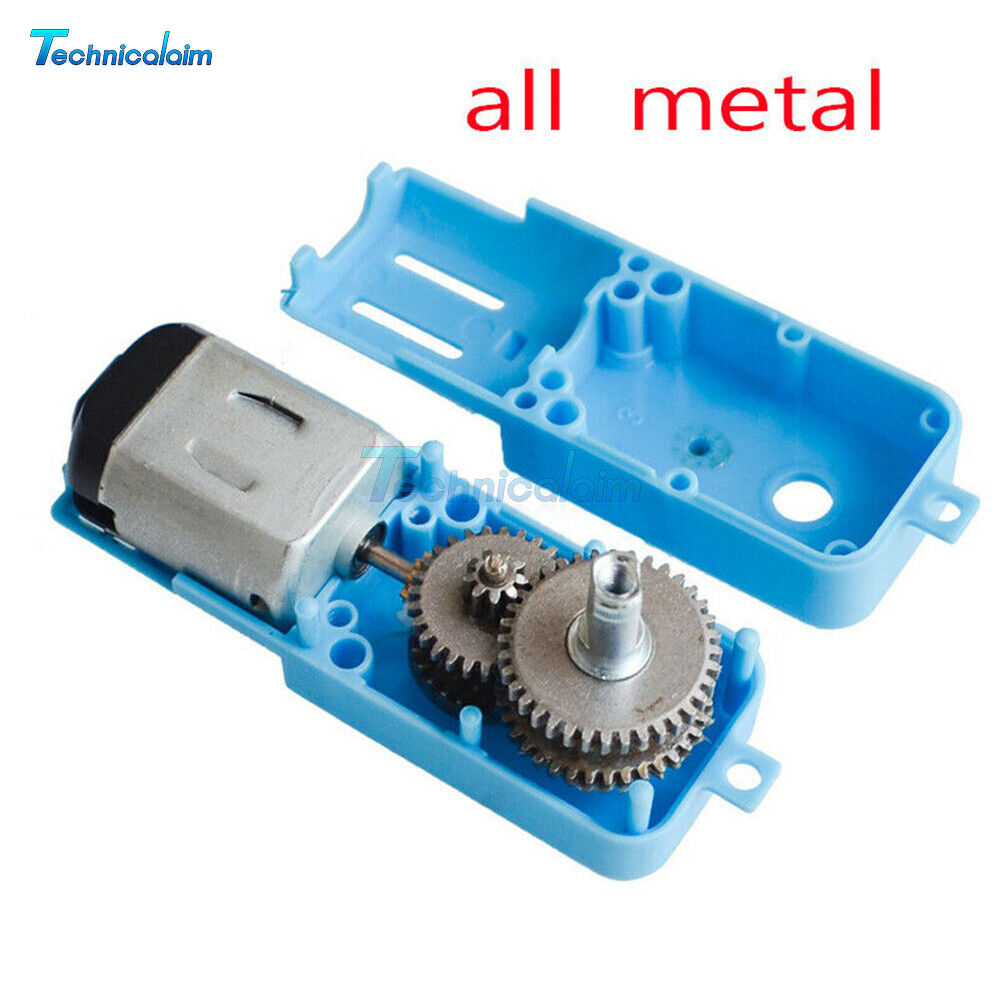

These are pictures of the all metal gears motor driver gearbox.
