24 KV Power Supply
Years ago I wired up a quick 24 KV power supply. However I never got around to putting it into a nice little box. Well that finally is done, it is in a cabinet. However it did not work when I tested it out, I had to change out the Power FET to get it up and running again. So with it working, I wanted to see if I could get a spark to travel around in circles in the presence of a magnetic field.

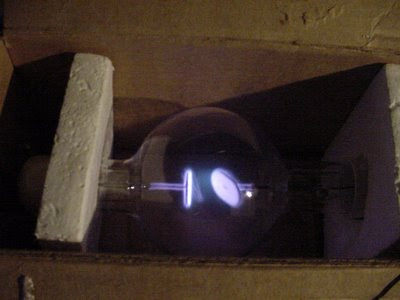

After playing around with the magnets I also tested out a Rife tube that someone had given me. It was just sitting in a cardboard box while I tested it. Then I also tested out a big U shaped argon tube to finish up the latest experiments. The video is up YouTube somewhere.
http://www.youtube.com/watch?v=19hcqKzOlBI
I drew up my schematic and posted it here on my blog. This schematic design was borrowed from one that I had found somewhere else on the Internet. You could easily use a 24 volt center tapped power transformer or a 12 volt transformer with a full wave bridge rectifier. I have used several power FET's with little change in the performance. They can be removed from a sick computer power supply.
After playing around with the magnets I also tested out a Rife tube that someone had given me. It was just sitting in a cardboard box while I tested it. Then I also tested out a big U shaped argon tube to finish up the latest experiments. The video is up YouTube somewhere.http://www.youtube.com/watch?v=19hcqKzOlBI
I drew up my schematic and posted it here on my blog. This schematic design was borrowed from one that I had found somewhere else on the Internet. You could easily use a 24 volt center tapped power transformer or a 12 volt transformer with a full wave bridge rectifier. I have used several power FET's with little change in the performance. They can be removed from a sick computer power supply.
Saturday, June 6, 2009
Poloroid TDA-03211 3211 32 LCD TV Repair.
The Polaroid 32 inch LCD TVs sell on EBay for as little as $250! Why? Because they have lots of problems. I know, I bought one of them for that price. The first problem is that the built in DVD does not work or last very long. Remove two screws and the DVD player is out of there and without it the power supply might just last a little longer.
However eventually the power supply will die. Mine would shut down sometimes and need to be turned off and then back on to get it working again. When it was working there was a dim area in the middle of the screen that was very obvious on white scenes. Then it smoked and gave up the ghost. The first thing you need to know is that you only need to remove one screw, the big one in the middle on the back side to remove the access cover. Then three small screws and the metal cover comes off.
In the power supply there are two 10 uF 450 volt electrolytic capacitors. They sometimes die quietly and sometimes they will die with lots of smoke. In the picture below one of them is shown turned over so you can see the crud around the lead where the goo was oozing out. The circuit board was even damaged under the capacitor from all of the heat.
The best solution is to replace the capacitors with some non-electrolytic 'paper' types. I used some .47 uF at 400 volt capacitors. These capacitors are much more durable, they are used in Tesla coils because they can take a lot of abuse. If you look at the holes and the drawing on the board you will see that this was an option back when they designed the TV. The picture below shows the new caps soldered in place.
With the improvement the picture is back up and brighter than it had been. The dark area in the middle was caused by the lights being dim from the capacitors being bad. When the light bulbs are dim the light does not reach the center of the screen very well.
However eventually the power supply will die. Mine would shut down sometimes and need to be turned off and then back on to get it working again. When it was working there was a dim area in the middle of the screen that was very obvious on white scenes. Then it smoked and gave up the ghost. The first thing you need to know is that you only need to remove one screw, the big one in the middle on the back side to remove the access cover. Then three small screws and the metal cover comes off.
In the power supply there are two 10 uF 450 volt electrolytic capacitors. They sometimes die quietly and sometimes they will die with lots of smoke. In the picture below one of them is shown turned over so you can see the crud around the lead where the goo was oozing out. The circuit board was even damaged under the capacitor from all of the heat.The best solution is to replace the capacitors with some non-electrolytic 'paper' types. I used some .47 uF at 400 volt capacitors. These capacitors are much more durable, they are used in Tesla coils because they can take a lot of abuse. If you look at the holes and the drawing on the board you will see that this was an option back when they designed the TV. The picture below shows the new caps soldered in place. With the improvement the picture is back up and brighter than it had been. The dark area in the middle was caused by the lights being dim from the capacitors being bad. When the light bulbs are dim the light does not reach the center of the screen very well.
